RECYCLING SHREDDERS, SHAVERS & BESPOKE MACHINERY

Dragon Shredders

The range of DRAGON SINGLE SHAFT SHREDDERS are of heavy construction, suited to long life in constant production.

Built to last

How does it work?

Dragon single shaft shredders are designed for the quick and efficient size-reduction of a broad range of materials down to a uniform dimension. They can provide volume reduction, products for further processing, end products for alternative use, security destruction of sensitive files and out-of-date/reject products.

The Dragon industrial shredder has in-built monitoring to maximise production and a user-friendly touch screen control which incorporates useful troubleshooting data. Your product is pushed forward by a variable speed hydraulic system. It is cut by indexable, 4 sided, replaceable cutters mounted onto a rotor passing through a segmented counterknife which also has 4 cutting edges.

The piece size of the shreds is determined by the hole size of the screen which is easily interchangeable.

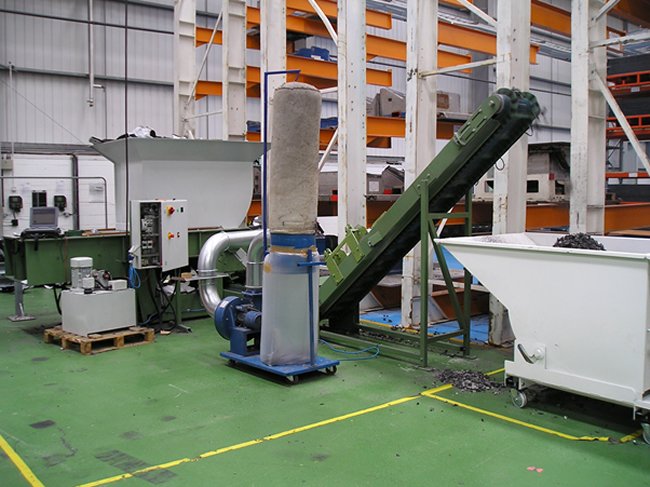

The shredder is mounted on anti-vibration feet and is ready for immediate connection to the electrical supply and your chosen discharge/extraction system option. The DRAGON is delivered guarded and fitted with requisite isolation switches to meet safety regulations.

Wide range of applications

Dragon industrial shredders are used in three main areas; recycling product back into production lines, re-processing waste into new products or reducing waste disposal costs by volume reduction.

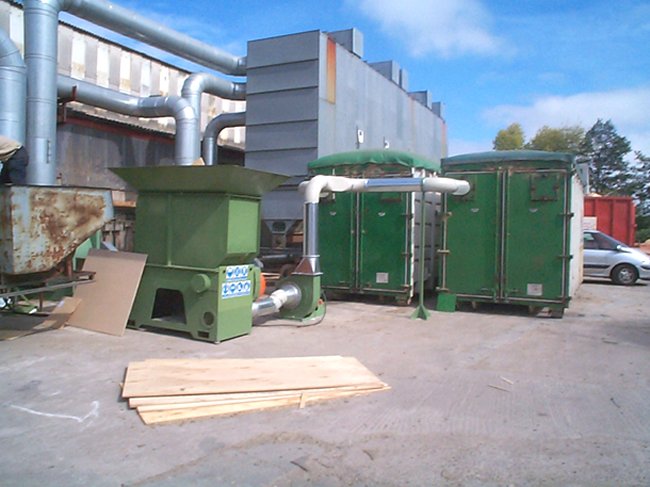

Waste wood/timber

Joinery offcutsg
Pallets
Waste timber
Skeletal waste

To make:-

Animal bedding
Biomass fuel
Pellet manufacture

Plastic

Purgings
Film
Bottles/components
Skeletal waste

Re-use your waste back into your production line

Your product e.g.

Marine waste
Automotive carpet/insulation
Confidential documents
Car trim
Paper/cardboard
Fibreglass

To re-purpose into new products:-

e.g. Animal bedding
Equestrian surfaces
Components
Or confidential destruction

Bespoke design

Dragon Machinery's design team can incorporate customer specific requirements which can be incorporated to produce a bespoke system tailor made to your application. We are flexible enough to be able to cater for your particular needs, with problem solving being a key part of our service. Our machines can help reduce your business' carbon footprint and save money by repurposing your waste. One size does not fit all when it comes to shredding. We work with our clients & recommend the right solution according to input size, type, volume, output specification, role of ancillary equipment, throughput requirements & plans for expansion.

Bespoke design

Credit: - http://www.arrow-recycling.co.uk

Dragon industrial shredders are of heavy construction, and indeed many of our machines built in the early 1990s are still going strong with their original owners. They are designed with extensive replaceable parts so even if the application in which they are used leads to damage and/or long-term wear, they can be restored back to almost new condition to provide many more years of service.

First class after sales

We pride ourselves on being UK manufacturers who are trustworthy and approachable. Our after sales support is second to none with spares available on a next day delivery and servicing/repairs are carried out throughout the UK and further afield by our team of experienced Dragon engineers.

Dragon waste shredder model comparison:

MODEL	D50	D80	D110	D135	D160
Rotor diameter (mm)	170	270	370	370	550
Hopper opening (mm)	571 x 892	857 x 1478	1139 x 1900	1419 x 1900	1706 x 2200
Main motor power (Kw)	7.5	18.5	37	45	90
Output hopper (fillings per hour)	1.5 - 4	1.5 - 4	1.5 - 4	1.5 - 4	1.5 - 6
Noise level (dBA)	85	85	85	85	85
Approx. Weight (kg)	1,250	2,800	4,550	5,500	11,500

Dragon Special Machines

DIMENSIONS	D50	D80	D110	D135	D160
A (mm)	571	857	1139	1419	1706
B (mm)	892	1478	1900	1900	2200
C (mm)	1870	2130	2250	2250	2855
D (mm)	910	960	1010	1010	1100
E (mm)	1320	1827	2143	2429	2887
F (mm)	2062	3141	3780	3780	5046
